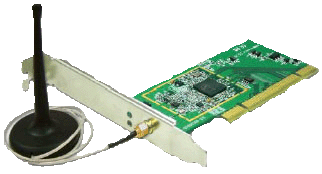

Our lowest-priced wireless adapter, the SD730 is a 11Mbps Wireless LAN PCI Adapter that creates freedom for your Desktop PC. This PCI Adapter installs right into your PCI Bus Slot providing wire-free access to networked resources from your LAN and Internet or create a network without networking cables. It dynamically shifts between 11, 5.5, 2, and 1 Mbps for maximum availability and reliability. Complying with 2.4 GHz IEEE 802.11b standard, SD Networking's SD730 ensures great performance for your wireless networking environment.
|
- Low interference and high susceptibility guarantee reliable performance
- Wire-Free access to networked resources for Desktop PC
- 32-bit PCI Local Bus Rev. 2.2 interface
- Wi-Fi compatible
- Uses 2.4 GHz frequency band (DSSS), which complies with worldwide requirements
- Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed, based on signal strength, for maximum availability and reliability of connection
- Diagnostic LED indicators
- Male Reverse SMA connector for detachable external Antenna
- Provides 64-bit and 128-bit Wired Equivalent Privacy (WEP)
- Distance coverage 35 to 100 meters indoor, 100 to 300 meters outdoors (depends on the environment)
|
|
Hardware | Standard | IEEE 802.11b WLAN Standard | Interface | 32-bitPCI BUS Rev 2.1/2.2 | Protocol | CSMA/CA with ACK | Antenna | 2dBi detachable antenna with female Reverse SMA connector | Data Transfer Rate | 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps | Diagnostic LED | Power, Link | Module Technique | Direct Sequence Spread Spectrum (DSSS), CCK, DQPSK, DBPSK | Frequency | 2.4 ~ 2.497GHz (Industrial Scientific Medical Band) | Transmit Power | 15 dBm (typical) | Receiving Sensitivity | 11Mbps: -80dBm @ 8% PER 2Mbps: -87dBm @ 8% PER | Channels | 11 Channels (US) 13 Channels (EU) | Power Consumption | PCI 3.3V Receiving: 250mA Transmitting: 450mA | Temperature | Operating: 0° ~ 55°C (32° ~ 131°F) Storage: -20° ~ 75°C (-4° ~ 167°F) | Humidity | 10% ~ 95% (Non-condensing) | Certifications | FCC Part 15.247(US) EST 300328 ARIB STD-T66 (Japan) | | |
|
