SD-361

Print This Page

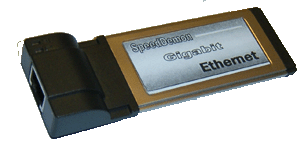

10/100/1000 Gigabit ExpressCard

User may change MAC address

Auto-negotiation senses speed and duplex capabilities of connected devices

Full and half duplex supported, IEEE 802.3x

ExpressCard/34 device also fits in ExpressCard/54 slots

Supports Wake On Lan (WOL) power management

Throughput Transfer rates up to 2000 Mbps

Price: $239.00


  Key Features


Fully complies with Gigabit IEEE 802.3ab, 802.3x specification.
Single PCI Express lane (x1) 2.5 Gbps interface.
One RJ-45 connector supports 10000 Mbps, 100Mbps, or 10Mbps data rate auto negotiation.
Plug-and-Play installation, auto setup IRQ and I/O address.
Supports IEEE 802.3x full-duplex flow control.
Supports Wake On LAN (WOL) power management.
Full-duplex design to double the performance to 20/200/2000 Mbps.

  Specifications


Network Standard: IEEE 802.3x, full and half duplex
Certification: FCC Class B, CE Mark
Network Port: RJ45 x 1 / (Auto-MDI/MDI-X)
Operating Humidity:10-90% (Non-condensing)
Dimension: 102.3 (L) x 34 (W) x 14.2 (H) mm (4 x 2.9 x 0.6 in.)
Compliant with PCI Express Specification, revision 1.0a
Operating Temperature: 0 – 57°C (32 – 134°F)
LEDs: 10/100/1000 Mbps Speed, Link/Activity
