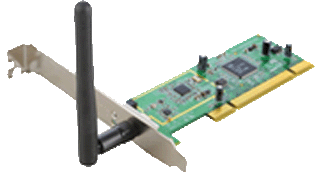

The fastest wireless adapter we offer, the SD830 is a 54Mbps Wireless PCI Card that cuts the wires to your desktop and provides 54Mbps speed to handle bandwidth-intensive applications. It complies with the IEEE 802.11g standard, making it backward compatible with 802.11b networks for assured compatibility. Advanced 128-bit WEP encryption is supported to provide secure access for your data. Cut the wires and move your desktop where you need it with SD Netwrorking’s 802.11g wireless PCI Card.
|
- Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
- Uses 2.4 GHz Frequency Band, which Complies with Worldwide Requirements
- Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
- Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
- Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
- Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
- Compatible with Windows 7/Vista/XP/2000/ME/98SE
- Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
- Detachable 2dBi dipole Antenna with Reverse SMA Connector
- Low Interference and High Susceptibility Guarantee Reliable Performance
- Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)
- Simple User Setup & Diagnostics Utilities
- 3-year limited warranty
|
| Hardware | | Interface | 32-bit PCI 2.2 Bus Master | | Standards | IEEE 802.11b and IEEE 802.11g | | Antenna | 1 x 2dBi Detachable Dipole Antenna | | LED Indicator | Link | | Power Consumption | Receive Mode: 370mA
Transmit Mode: 470 mA | | Supported OS | Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, 98SE | | Dimensions | 121 x 44 mm (4.8 x 1.7 inches) (without metal bracket) | | Weight | 60g (2.1oz.) (with antenna) | | Temperature | Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F) | | Humidity | 10% ~ 95% max. (non-condensing) | | Certification | CE, FCC | | Wireless | | Modulations | 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM | | Frequency | 2.412 to 2.484 GHz (Industrial Scientific Medical Band) | | Media Access Protocol | CSMA/CA with ACK | | Data Rate (auto fallback) | 802.11b: up to 11Mbps
802.11g: up to 54Mbps | | Output Power | 15dBm (typical) @ 802.11b
13dBm (typical) @ 802.11g | | Receiving Sensitivity | 54Mbps 10% PER @ -72 dBm (typical)
11Mbps 8% PER @ -85 dBm (typical) | | Security | WPA/WPA2(TKIP), WPA-PSK/WPA2-PSK(AES/TKIP), 64/128-Bit WEP (Hex or ASCII) | | Channels | 1~11 (FCC) 1~13 (ETSI) | |
|
