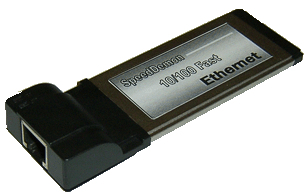

10/100 Fast ExpressCard Ethernet

User may change MAC address

Auto-negotiation senses speed and duplex capabilities of connected devices

Full and half duplex supported, IEEE 802.3x

ExpressCard/34 device also fits in ExpressCard/54 slots

Supports Wake On Lan (WOL) power management

Throughput Transfer rates up to 200 Mbps

Price: $173.00

  Key Features

Fully complies with 10/100 IEEE 802.3 specification.
Supports Single-lane (or x1) PCI Express specification.
One RJ-45 connector supports 100Mbps, or 10Mbps data rate auto negotiation.
Plug-and-Play installation, auto setup IRQ and I/O address.
Supports IEEE 802.3x full-duplex flow control.
Supports Wake On LAN (WOL) power management.
Full-duplex design to double the performance to 20/200Mbps.


Network Standard: IEEE 802.3x, full and half duplex
Certification: FCC Class B, CE Mark
Network Port: RJ45 x 1 / (Auto-MDI/MDI-X)
Operating Humidity:10-90% (Non-condensing)
Dimension: .83 in. x 3.64 in
Compliant with PCI Express Specification, revision 1.0a
Operating Temperature: 0° ~ 50°C (32° ~ 122°F)
LEDs: 10/100 Mbps Speed, Link/Activity
